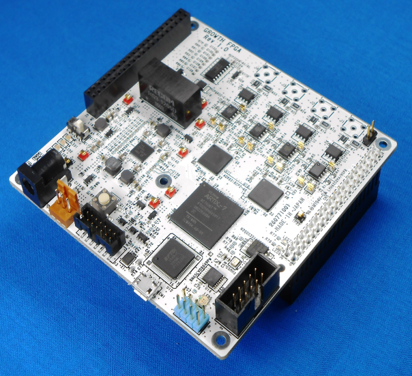

GROWTH BOARD (First ADC/FPGA board)

・ADC : Sampling Frequency 65MHz(12bit)
 - Simultaneous input : 4ch Analog
・ADC High speed control by FPGA Artix7
・Connectable RaspberryPi3

CPU-

  • Product Image
  • Specification
  • Documents
  • connect RaspberryPi3

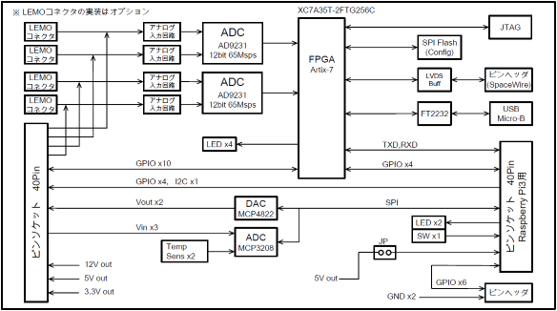

    Block Diagram
  • FPGA X7A35T-1FTG256C(Artix-7)
    ADC AD9231BCPZ-65(2ch/Device)x2
    Resolution:12bit
    Channel:4ch
    Sampling Frequency:65MSPS(MAX)
    Input voltage range:±5V
    SerialADC MCP3208-BI/SL
    Resolution:12bit
    Channel:8ch
    Sampling Frequency:50KSPS(MAX)
    Input voltage range:0-3.3V
    シリアルDAC MCP4822-EMS
    Resolution:12bit
    Channel :2ch
    Output voltage range:1-3.3V
    Board Size 95mmx95mm
  • Brochure GROWTH_FPGA_Board.pdf
    Specification P260778001_GROWTH-FY2016_仕様書_Rev1p2
