SBEV-RCAR-KF-M06 (Advanced Model)

SBEV-RCAR-KF-M06 (Advanced Model)

This product has been discontinued.
Please consider our CCPF-SK (Connected Car Platform Evaluation Board) as well.

CPU-

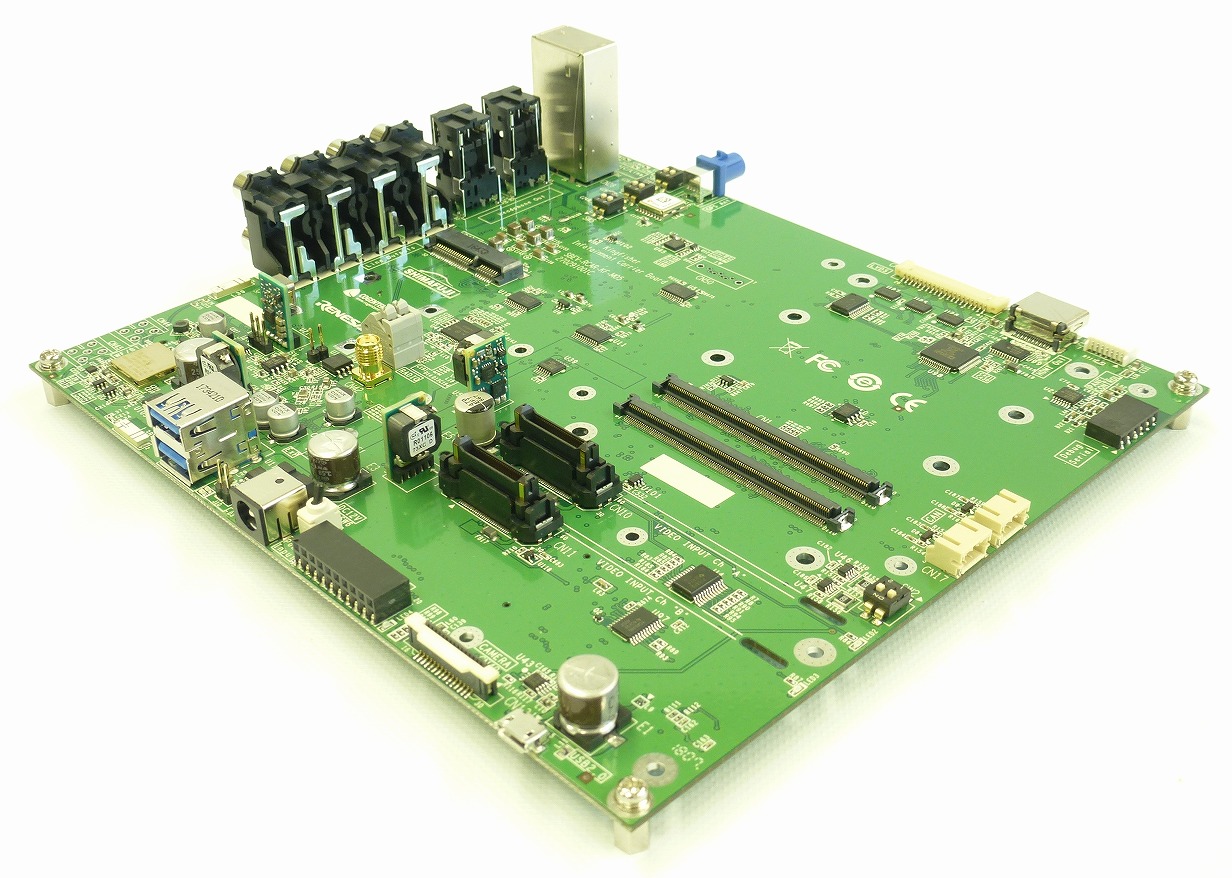

• Product Image
• Specification
• Documents
• Information

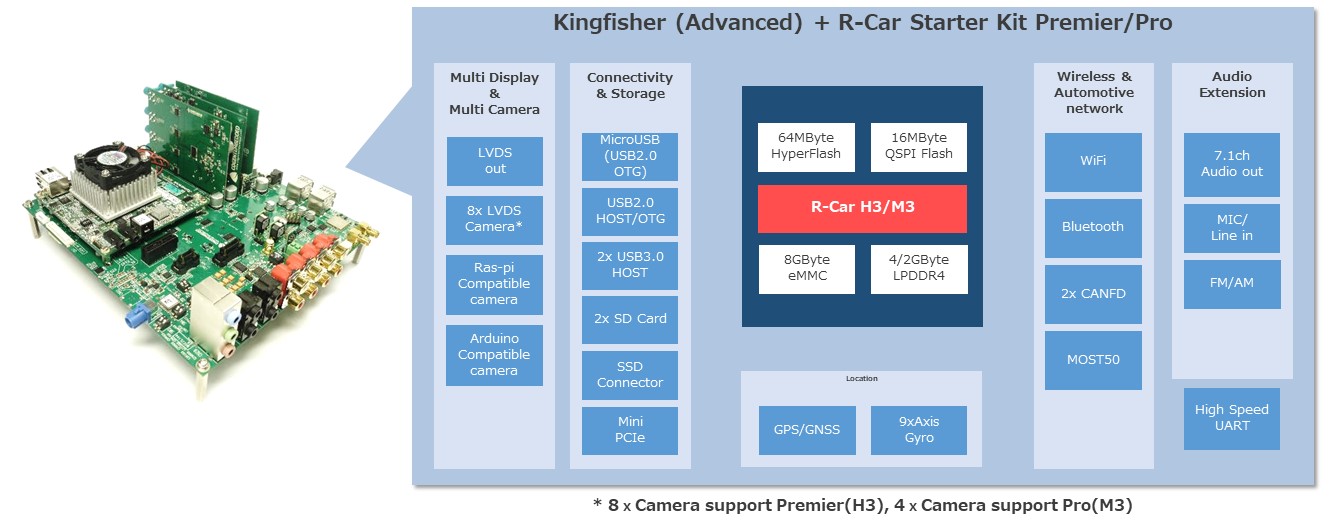

• BLOCK DIAGRAM


• Features
  Multi Display ＆ Multi Camera	Max 8ch ＆ Selectable camera LVDS IF for in-vehicle connection Max 3ch Displey output
  Wireless & In-Vehicle network	WiFi/BT/x2 CANFD/Ethernet AVB/MOST50 Optimized for In-vehicle peripherals and interface
  Easy to start automotive Linux	Best suited for AGL and GENIVI development All technical documents and basic software will be obtained from eLinux.org/R-Car pages

• SBEV-RCAR-KF-M06

  　 　 　 　 　

  File name	Revision	Date	Download
  Hardware specification EN	1.30	2018/08/02	Click here to download
  Hardware specification JP	1.30	2018/08/02	Click here to download
  Board schematic	4.0	2019/08/27	Click here to download
  BOM list	4.0	2018/08/02	Click here to download
  Assembly drawing	1.0	2018/08/02	Click here to download






  SBEV-RCAR-KF-M05

  　 　 　 　 　

  File name	Revision	Date	Download
  Hardware specification EN	1.20	2018/01/30	Click here to download
  Hardware specification JP	1.20	2018/01/30	Click here to download
  Board schematic	3.2	2018/07/13	Click here to download
  BOM list	3.2	2018/01/30	Click here to download
  Assembly drawing	1.00	2018/01/30	Click here to download






  SBEV-RCAR-KF-M04

  　 　 　 　 　

  File name	Revision	Date	Download
  Hardware specification EN	1.11	2018/01/16	Click here to download
  Hardware specification JP	1.10	2017/09/04	Click here to download
  Board schematic	3.1	2017/08/11	Click here to download
  BOM list	3.1	2017/08/11	Click here to download
  Assembly drawing	1.00	2017/09/12	Click here to download

• eLinux - R-Car/Boards/Kingfisher


  For more information on Kingfisher, please refer to here.
  https://elinux.org/R-Car/Boards/Kingfisher
