SBEV-RZ/V2L

SBEV-RZ/V2L Evaluation Board

The SBEV-RZ/V2L is an evaluation board equipped with Renesas' RZ/V2L microcontroller (R9A07G054L23GBG).
This board has MIPI camera input, USB, ETHER, SD, and AI accelerator (DRP-AI) to evaluate RZ/V2L for a variety of applications, including image processing.

Open price.

CPURZ/V2L（R9A07G054L23GBG）
AI Accelerator; DRP-AI
2x Cortex-A55(1.2GHz), Cortex-M33(200MHz)
Simple ISP(provided in the DRP library)

• Product Image
• Specification
• Documents

•

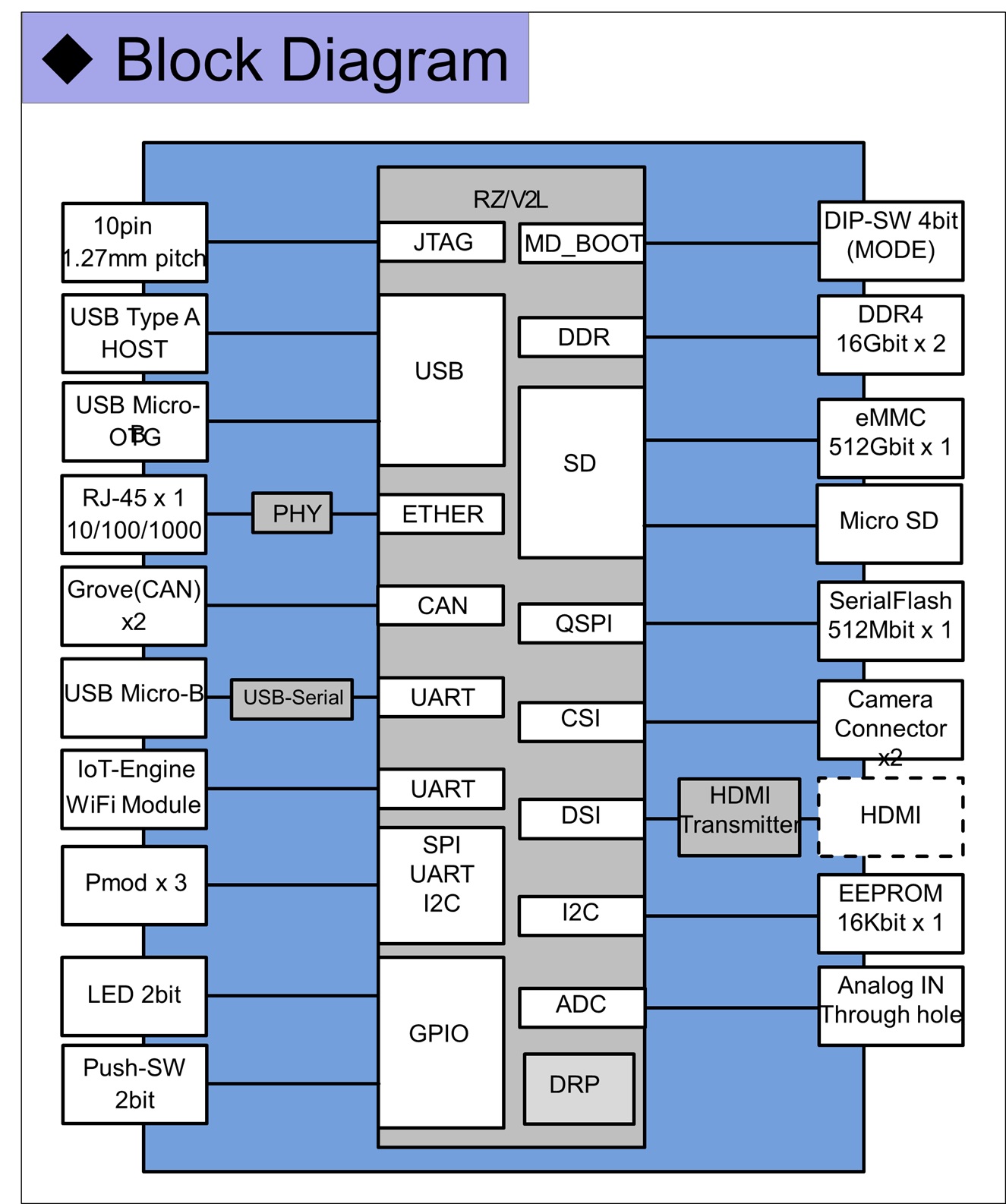

  ■ SBEV-RZ/V2L Block Diagram



• CPU	RZ/V2L（R9A07G054L23GBG） 　　AI Accelerator; DRP-AI 　　2x Cortex-A55(1.2GHz), Cortex-M33(200MHz) 　　Simple ISP(provided in the DRP library)
  Memory	DDR 4GB Serial Flash Memory 64MB eMMC 64GB EEPROM 2kB
  External	USB Type A (HOST) x1 USB Micro B (OTG) x1 USB Micro B (USB-Serial) x1 CAN x2 MIPI-CSI x1 Ether x1 Micro SD Card Slot x1 JTAG (Half pitch 10pin) x1
  Evaluation components	LED x2 Push-SW x2
  Power	DC 5V DC Jack
  Board Size	100mm x 110mm (excluding protrusions)

• Brochure	RZV2LEvaluationBoard_SBEV-RZV2L_EN.pdf
  Difference between SBEV-RZ/V2L and Renesas' SMARC EVK	Diff_SBEV-RZV2L&SMARC-EVK.pdf



  ***Those files need password to open***
  ※Please refer the password come with the SBEV-RZ/V2L Evaluation Board




  Hardware simple specification	RZV2L Board H/W Specifications
  Board schematic	RZ/V2L Schematic
  Patch_setup instructions (for v1.00)	Patch_Setup Instructions
  Linux Packages (for v1.00)	Complete Linux package v100 binaries
  Patch_setup instructions (for v3.02)	Patch_Setup Instructions
  Linux Packages (for v3.02)	Complete Linux package v302 binaries
