RZ/A2M Eva-Lite

RZ/A2M Evaluation Board

This evaluation board is a two-board configuration mounted a RZ/A2M microcomputer (Renesas Electronics).

This board Equipped with MIPI® camera input, HyperMCP™, LVDS display output, acceleration sensor, USB, Ether, microSD card slot, can be evaluated for RZ/A2M various applications including image processing/analysis.

There are external interface I/F which are RS485 x2, UART x3, SPI x2, CAN x2, analog input x4, and could control external Serial servo etc. and supply input voltage (DC10-50V *1) .

*1: Standered Model 10-30V, High voltage Model 20-50V


There are software libraries for this evaluation board on GitHub (https://github.com/JiGoRo1969/semb1451)

CPURZ/A2M R7S921053VCBG
Arm Cortex-A9 528MHz
Internal RAM 4MB
DRP 6 tiles

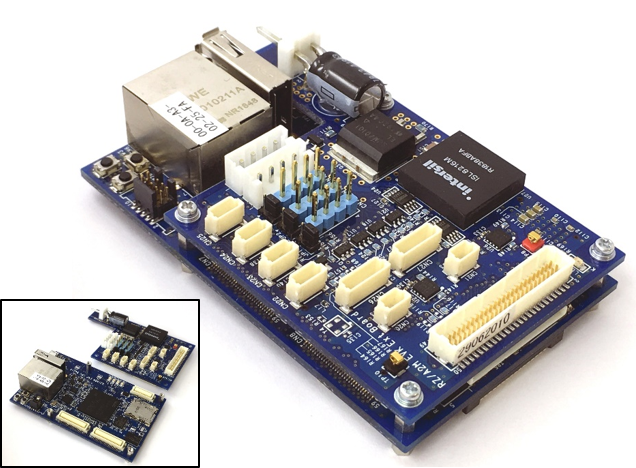

• Product Image
• Specification
• Documents

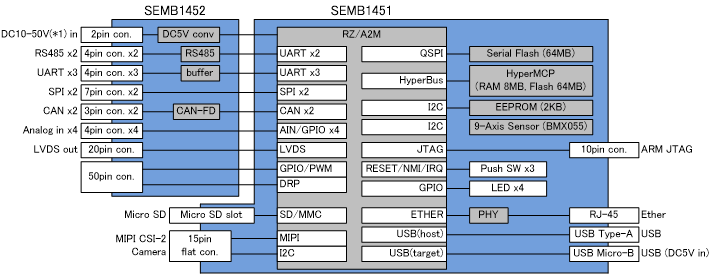

• ■ RZ/A2M Eva-Lite (SEMB1451-1452) BlockDiagram




  ---

  ■ RZ/A2M Eva-Lite (SEMB1451-1452)




  ---

• CPU	RZ/A2M R7S921053VCBG   Arm Cortex-A9 528MHz   Internal RAM 4MB   DRP 6 tiles
  Memory	HyperMCP™ Flash  64MB        RAM  8MB Serial Flash Memory 64MB EEPROM 2KB
  External Interface	MIPI CSI-2 x1 Ether(10/100BASE-TX) x1 USB2.0 HOST(Type-A) x1 USB2.0 Target(Micro-B) x1 microSD Card Slot x1 RS485 x2 UART(1/2wire) x3 SPI x2 CAN x2 Analog input x4 LVDS output x1 External I/O(GPIO/PWM/DRP) JTAG(ARM, Half pitch 10pin)
  Other	9-Axis Sensor(BMX055) x1 LED x4 Push Switch x3
  Power	DC 10-50V *1 2pin Connector DC5V USB(Micro-B) *1: Standered Model 10-30V, High voltage Model 20-50V
  power consumption	9W(typ)
  Size	50mm x 80mm

• Brochure	RZA2M-Eva-Lite_EN.pdf
  Users Manual (rev.1.03)	RZA2M Evaluation Lite HWSpecificationUsersManual 10V-30V Rev1.03.zip
  RZA2M Evaluation Lite CPU Board Schematic (rev.1.05) (with password)	RZA2M_Evaluation_Lite_CPU_Board_Rev1.05.zip
  RZA2M Evaluation Lite Extension Board Schematic (rev 1.05) (with password)	RZA2M_Evaluation_Lite_Extention_Board_Rev1.05.zip
  RZ/A2M Eva-Lite SEMB1451/SEMB1452 software library	GitHub
