SBEV-RCAR-KF-GMSL02 (GMSL Camera Board)

SBEV-RCAR-KF-GMSL02 (GMSL Camera Board)
SBEV-RCAR-KF-GMSL02 (GMSL Camera Board)

Camera Board for Kingfisher board

CPU-

  • Product Image
  • Specification
  • Documents
  • Information

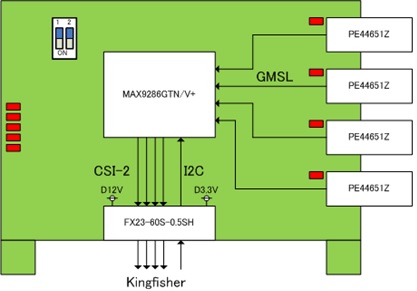

  • BLOCK DIAGRA
  • Features
    Serializer MAX9286GTN/V+x1
    Connector PE44651Z(FAKRA) x4 (Camera side)
    FX23-60S-0.5SHx1 (kingfisher side)
    Control I2Cx1
    DIP Switch Mode select x1
    LEDs Link LED x4、Mode LEDx5
    Board size 92mm×64mm
    Power DC 3.3V、12V(via connector)
  •
    File name Revision Date Download
    Hardware specification EN----  2018/--/--
    Hardware specification 日本語----  2018/--/--
    Board schematic1.00  2018/01/18 Click here to download
    BOM list----  2018/--/--
    Assembly drawing1.00  2018//01/16 Click here to download
  • eLinux - R-Car/Boards/Kingfisher


    For more information on Kingfisher, please refer to here.
    https://elinux.org/R-Car/Boards/Kingfisher


    Recomended Camera


    For more information on Kingfisher, please refer to here.
    https://elinux.org/R-Car/Boards/Kingfisher
    Please refer「Connection-confirmed Hardware information」on web pages.
