R-CAR H3e-2G Starter Kit

R-CAR H3e-2G Starter Kit
R-CAR H3e-2G Starter Kit

The premier R-Car starter kit supports best-in-class computing performance for automotive and offers a powerful computing library to provide the ultimate automotive computing environment.

CPUR-Car H3e-2G
　Arm®Cortex®-A57 Quad
　Arm®Cortex®-A53 Quad
　Arm®Cortex®-R7 Dual Lock-Step対応

  • Product Image
  • Specification
  • Information

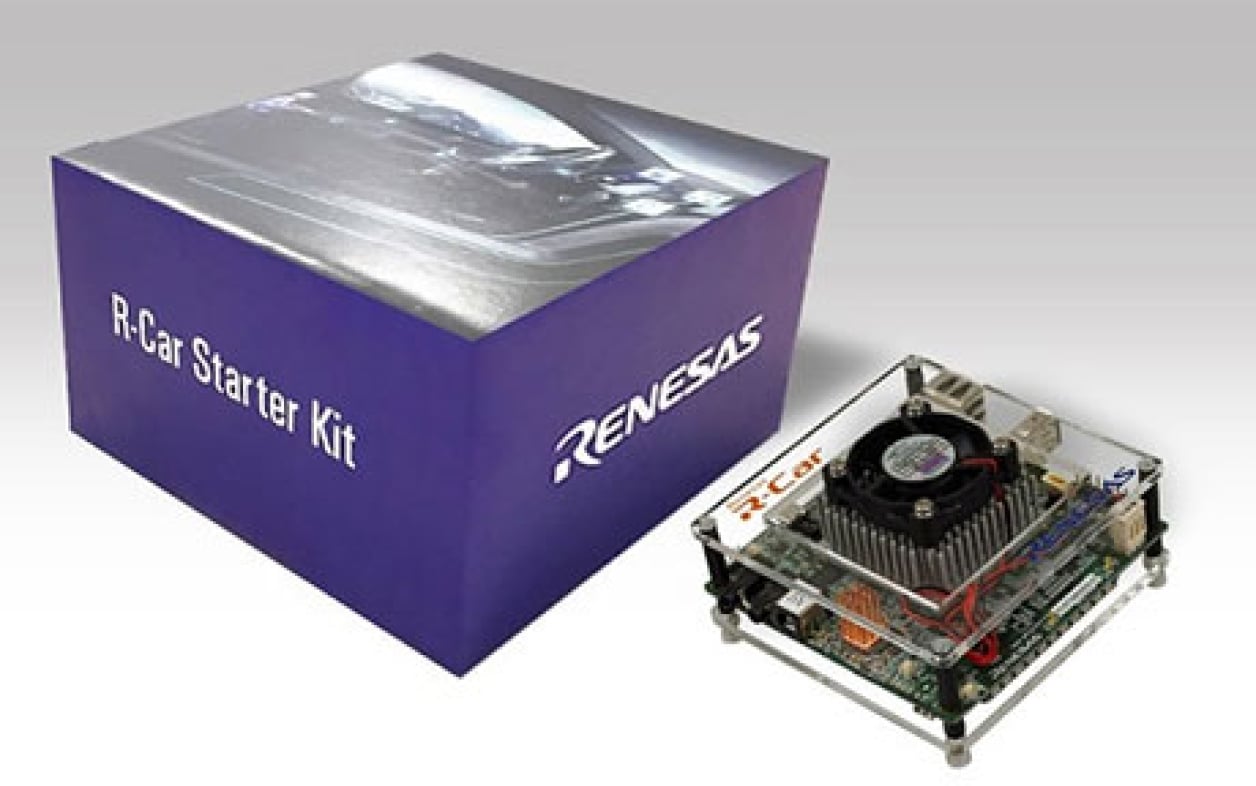

  • R-CAR H3e-2G Starter Kit





  • CPU 　　ARM CA57 (ARMv8) 2.0 GHz quad core, with NEON/VFPv4, L1$ I/D 48K/32K, L2$ 2MB
    　　　SoC changed from H3 to H3e-2G.
    Memories 　　INTERNAL 384KB SYSTEM RAM
    　　DDR 4/8 GB LPDDR4
    　　HYPERFLASH 64 MB HYPER FLASH (512 MBITS, 160 MHZ, 320 MBYTES/S)
    　　QSPI FLASH 16MB QSPI (128 MBITS,80 MHZ,80 MBYTES/S)1 HEADER QSPI MODULE
    　　EMMC 8/32/64/128 GB EMMC (HS400 240 MBYTES/S)
    　　MICROSD-CARD SLOT (SDR104 100 MBYTES/S)
    Connectors 　　CN1 COM Express type connector 440pin 　　CN2 QSPI Flash module
    　　CN3 DEBUG JTAG
    　　CN4 HDMI
    　　CN5 USB 2.0
    　　CN6 Push-Pull microSD Card Socket
    　　CN7 Ethernet, Connector, RJ45
    　　CN8 LINE Out
    　　CN9 MIC Input
    　　CN10 DEBUG SERIAL (not populated)
    　　CN11 CPLD Programming JTAG
    　　N12 DEBUG SERIAL (serial)
    　　CN13 Main Power Supply input (5VDC)
    　　N14 CPU Fan
    Board specifications 　　Dimensions: 95mm × 95mm
    　　Board thickness: 1.6mm
    　　External power supply 5V / 6A max, Ripple & Noise (Vp-p) Full load 200mV
    　　Topr Operating ambient temperature: Free Air room temperature 25deg ave.
    　　Vcc 5V system power supply voltage (range 5V +- 5%)
    　　I board Maximum current consumption 8A , 40W
    AC Adapter (Option) Recommended
