SBEV-RZ/T1

SBEV-RZ/T1
RZ/T1 evaluation board

This evaluation board is mounted a RZ/T1 (R7S910018CBG) microcomputer (Renesas Electronics). This boards have COM port (USB-Serial) to connect PC. It also has 170 pin external terminals to evaluate RZ / T1 for various applications.

CPURZ/T1 R7S910018CBG
Cortex-R4 600MHz
Internal memory 1024+512KB
R-IN engine
Encoder I/F

  • Product Image
  • Specification
  • Documents

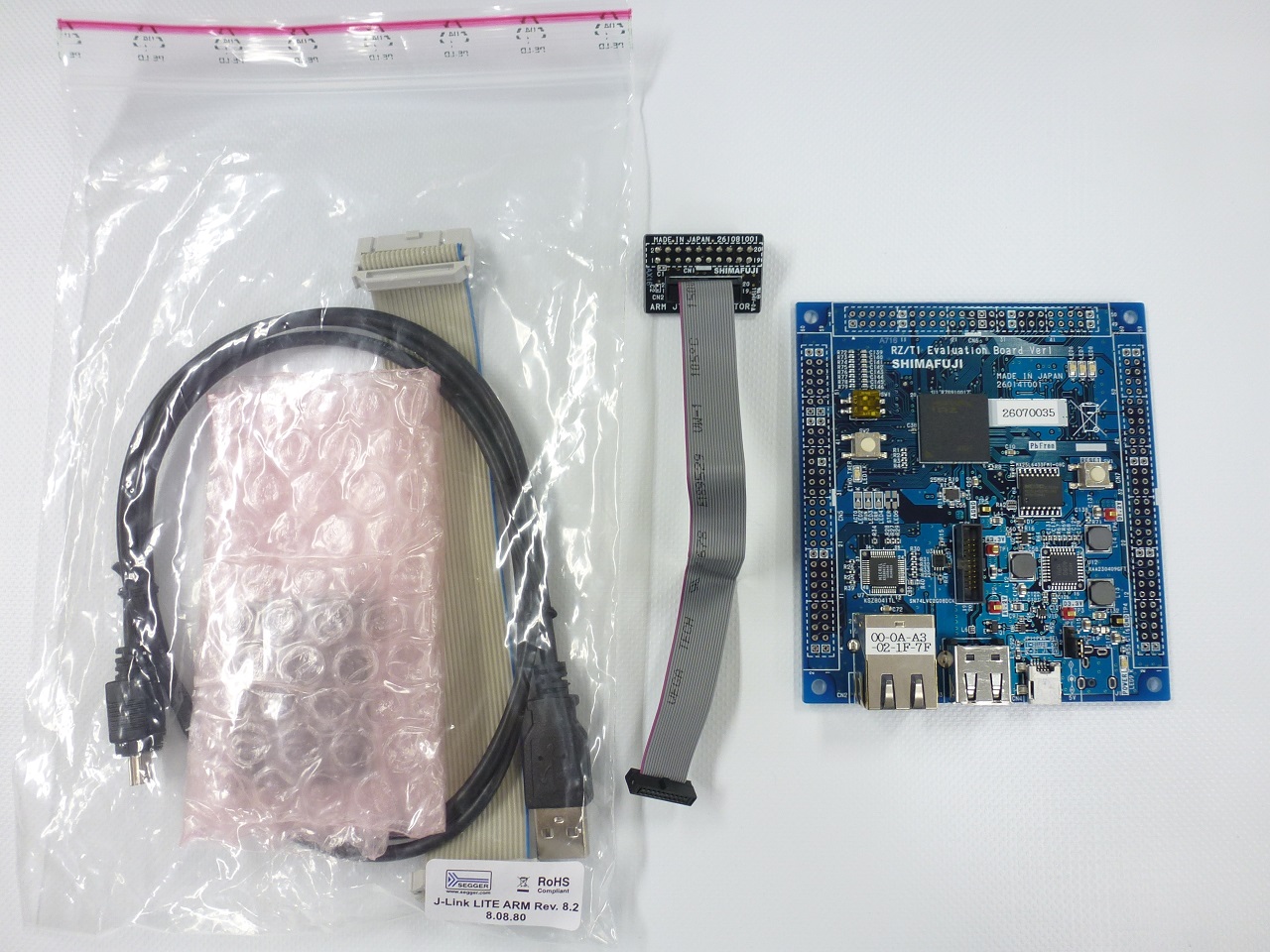

  • SBEV-RZ/T1/IAR (Starter Kit)

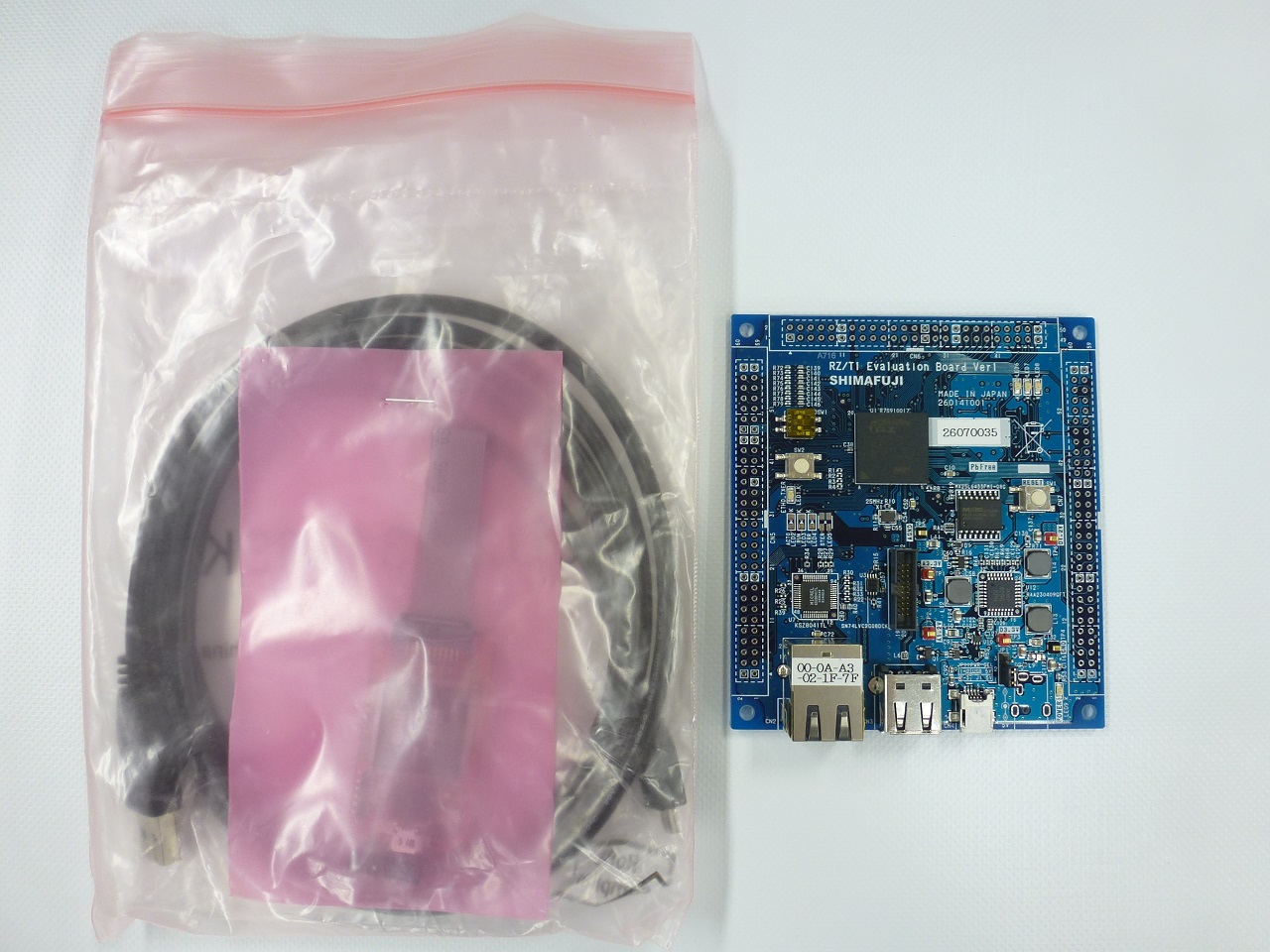

    SBEV-RZ/T1/SEGGER (Starter Kit)
    ※with JTAG - JTAG mini Adapter (Shimafuji)

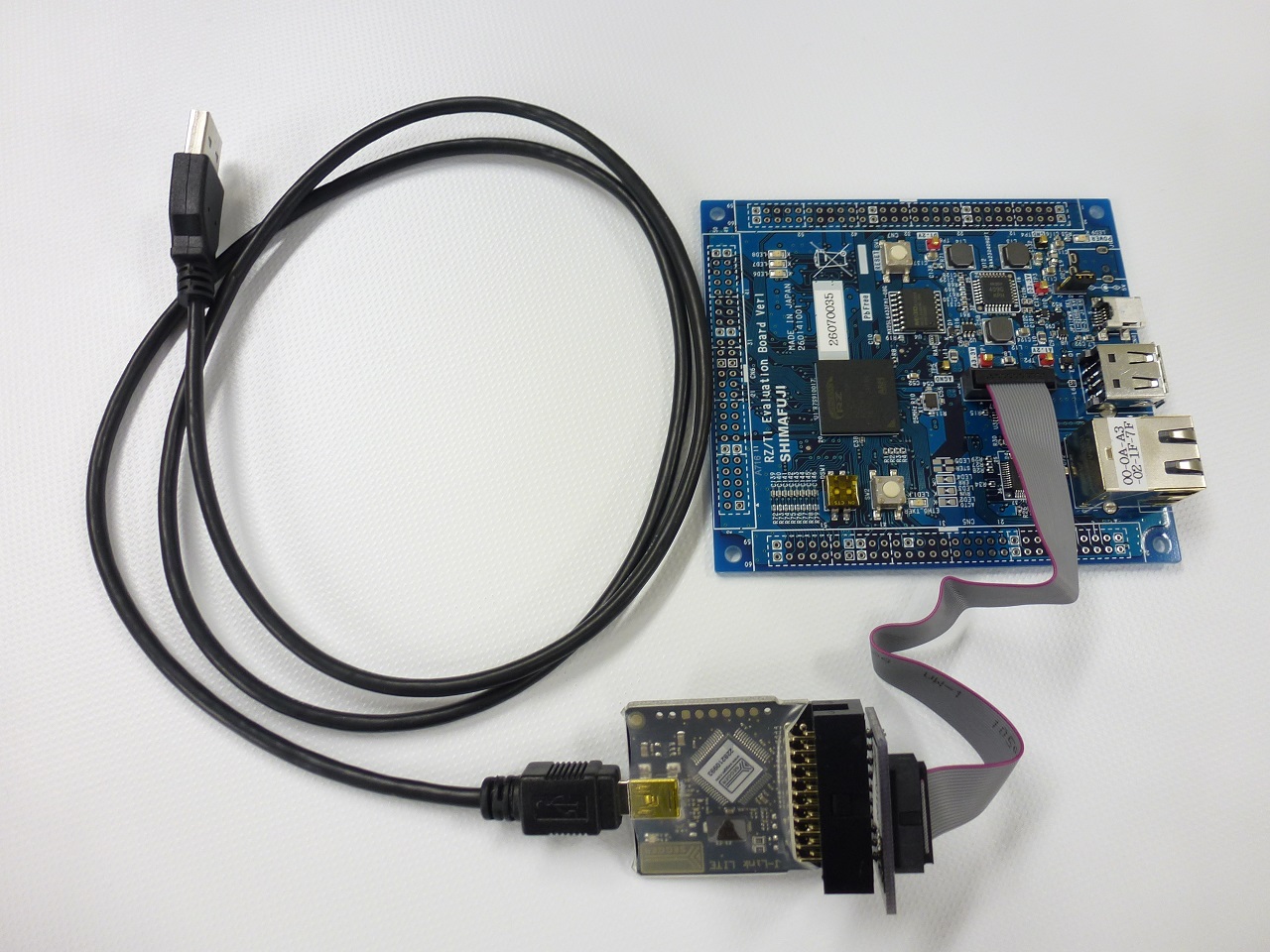

    SBEV-RZ/T1 board - SEGGER ICE
  • CPU RZ/T1 R7S910018CBG
      Cortex-R4 600MHz
      Internal memory 1024+512KB
      Build in R-IN Engine
      Build in Encoder I/F
    Memory SPI Flash Memory 8MB
    SDRAM       32MB
    EEOROM(OPTION) 2KB
    I/F USB2.0 HOST (Type-A)
    USB-Serial (FX230X,MicroB)
    ETHER (10/100BASE)
    External terminals (60Pinx2, 50Pin x1)
    JTAG (ARM, Half pitch 20pin)
    Support OS TOPPERS
    Size 90mm x 100mm (Exclude protrusion)
    Power DV 5V DC Jack(EIAJ#2)
  • Brochure SBEV-RZT1-SP27T1001.pdf
