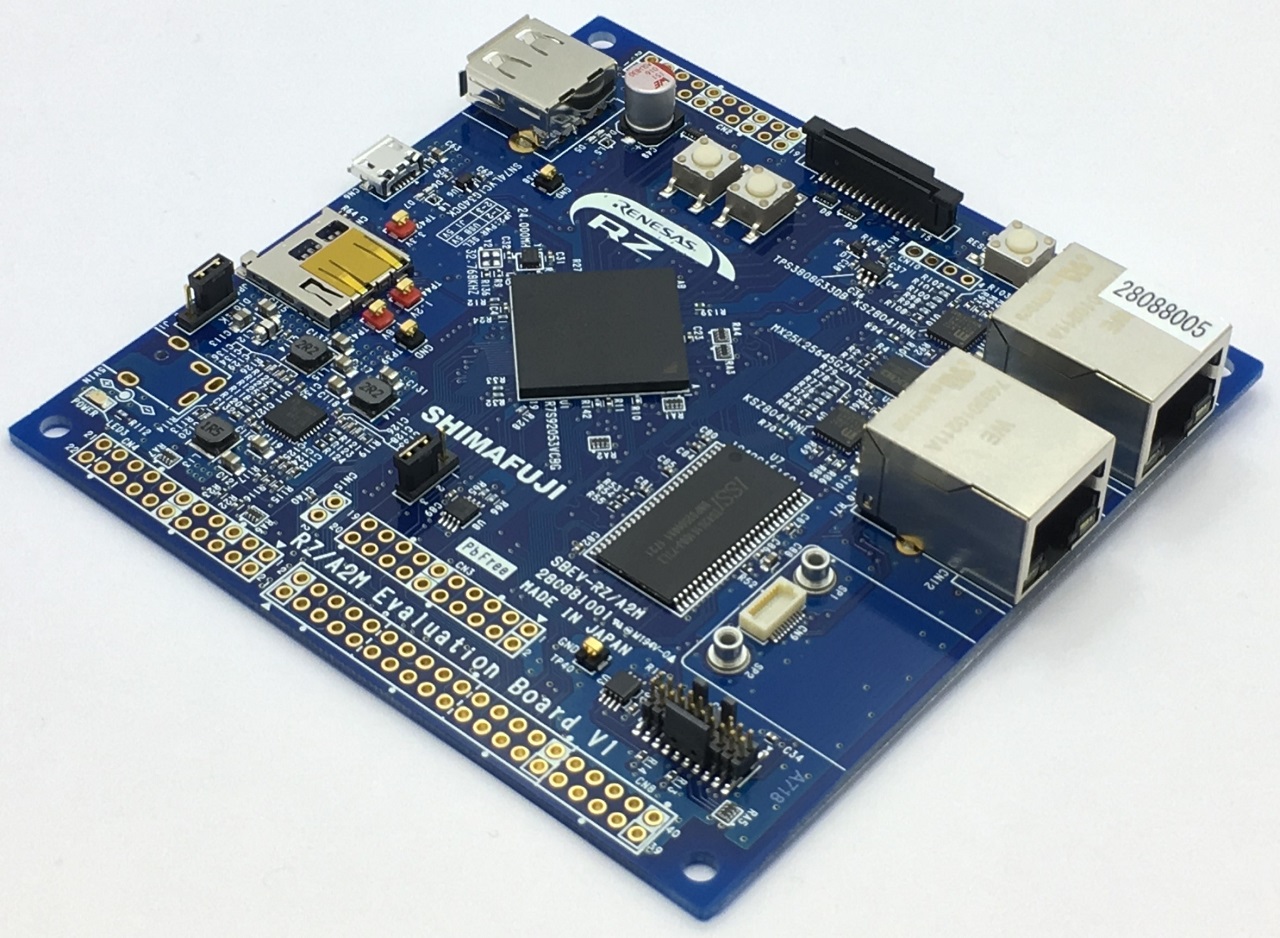

SBEV-RZ/A2M Evaluation Board

This evaluation board is mounted a RZ/A2M microcomputer (Renesas Electronics).

This product is equipped with MIPI camera input, LVDS display output, USB, and Ether, and can evaluate RZ / A2M for various applications such as image processing.
The product lineup is as follows.
・ SBEV-RZ/A2M (board body only, )
・ SBEV-RZ/A2M/SEG (SEGGER debugger bundle)
・ SBEV-RZ/A2M/IAR (IAR debugger bundled product)
・ SBEV-RZ/A2M/LVDS-LCDKIT (set of MIPI camera and LCD display and SEGGER debugger)

CPURZ/A2M R7S921053VCBG
Arm Cortex-A9 528MHz
Internal RAM 4MB
DRP 6 tiles

  • Product Image
  • Specification
  • Documents
  • Information

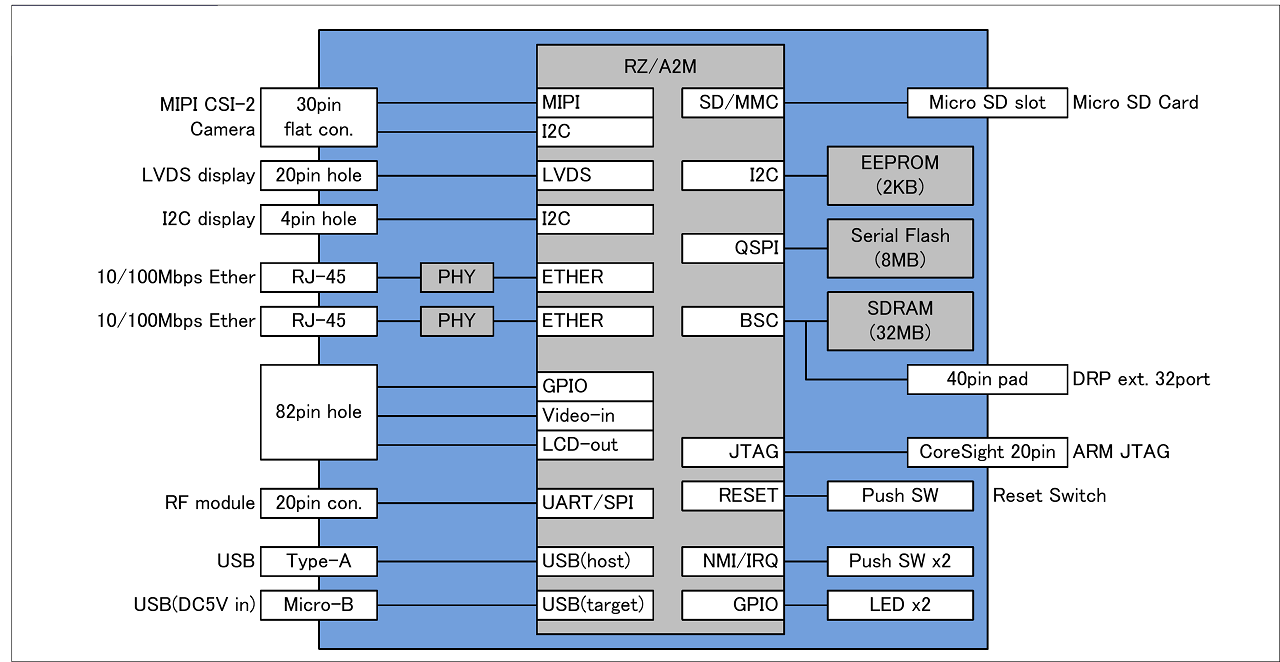

  • ■ SBEV-RZ/A2M BlockDiagram

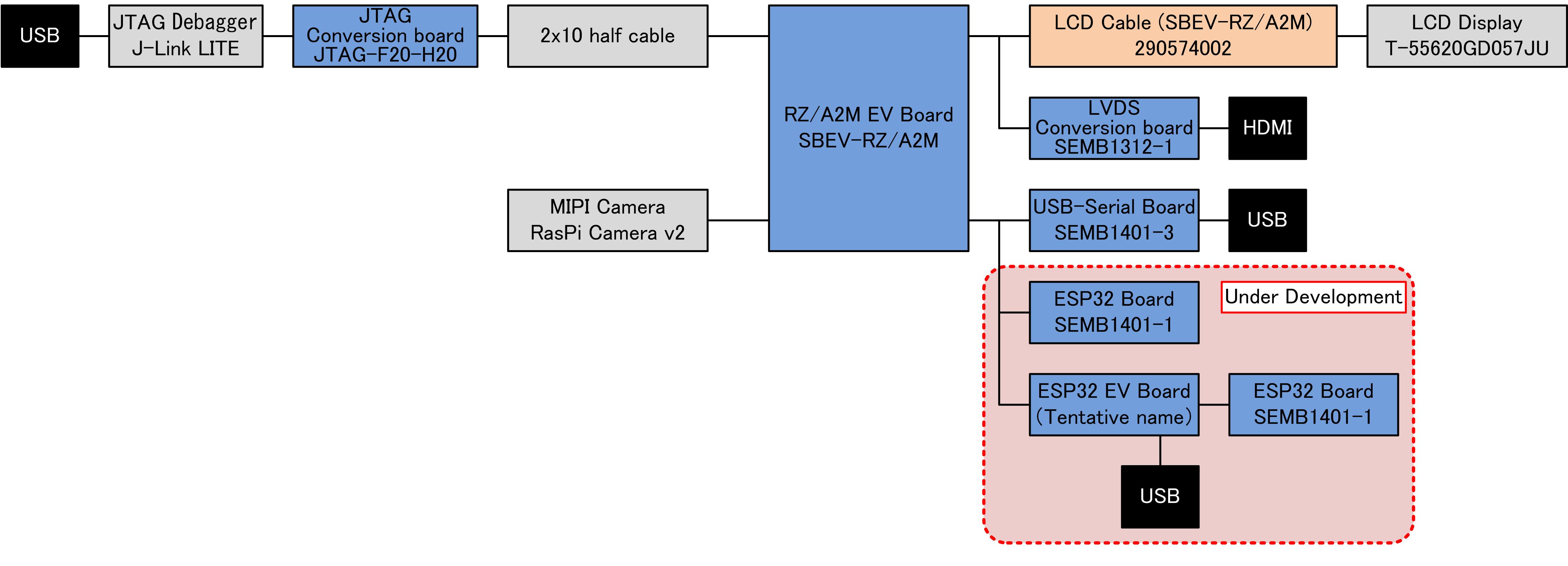

    ■SBEV-RZ / A2M option board connection diagram list (including those under development)

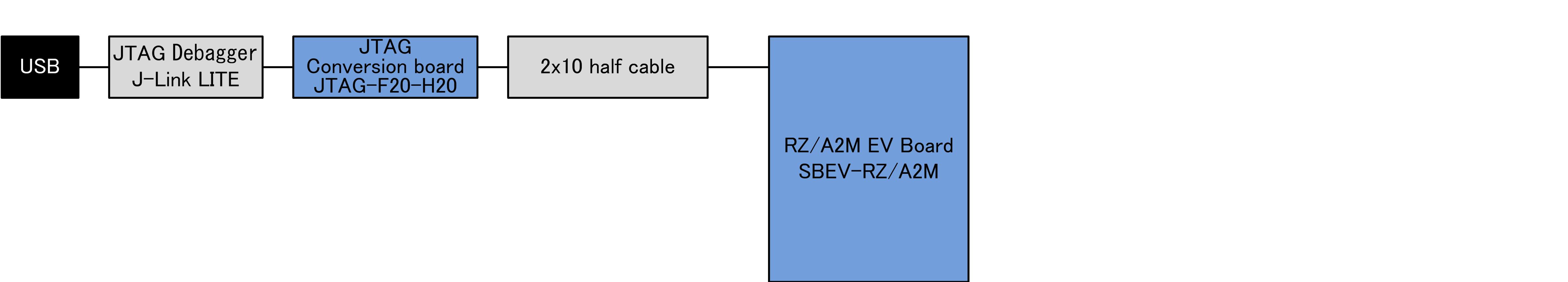

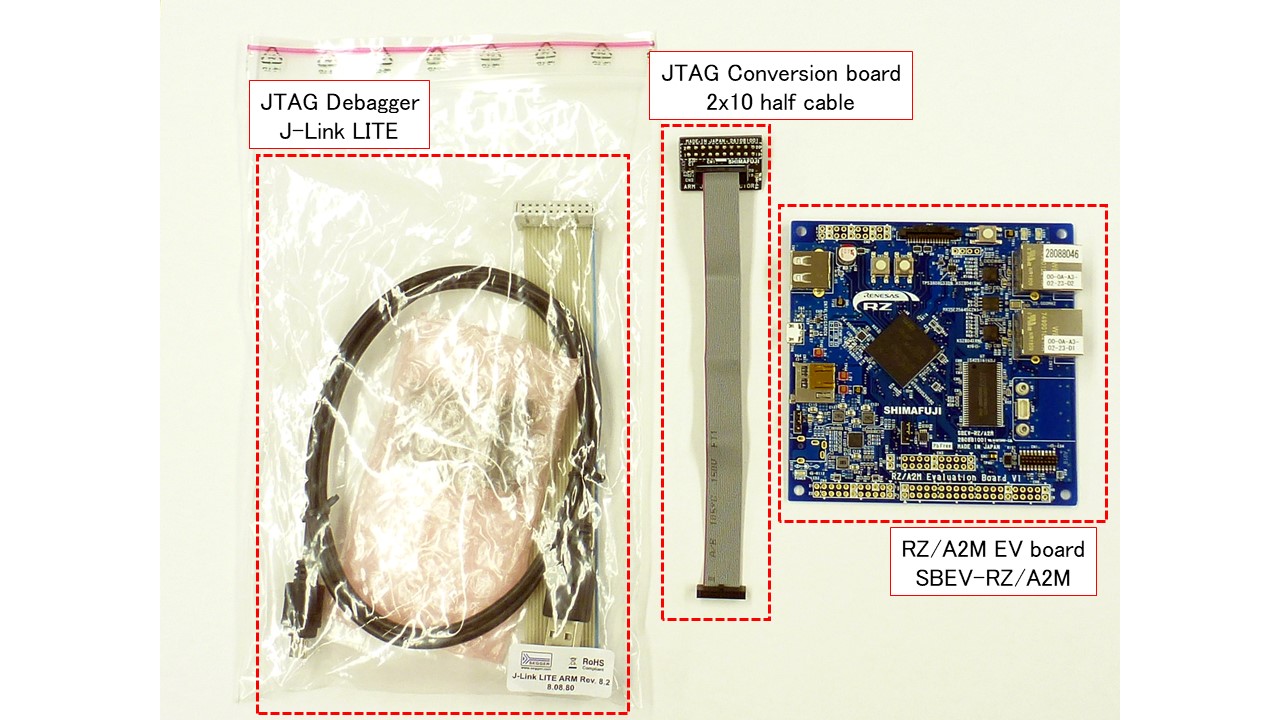

    ■ SBEV-RZ / A2M / SEG (JTAG bundled product)
    * Includes JTAG debugger and cable

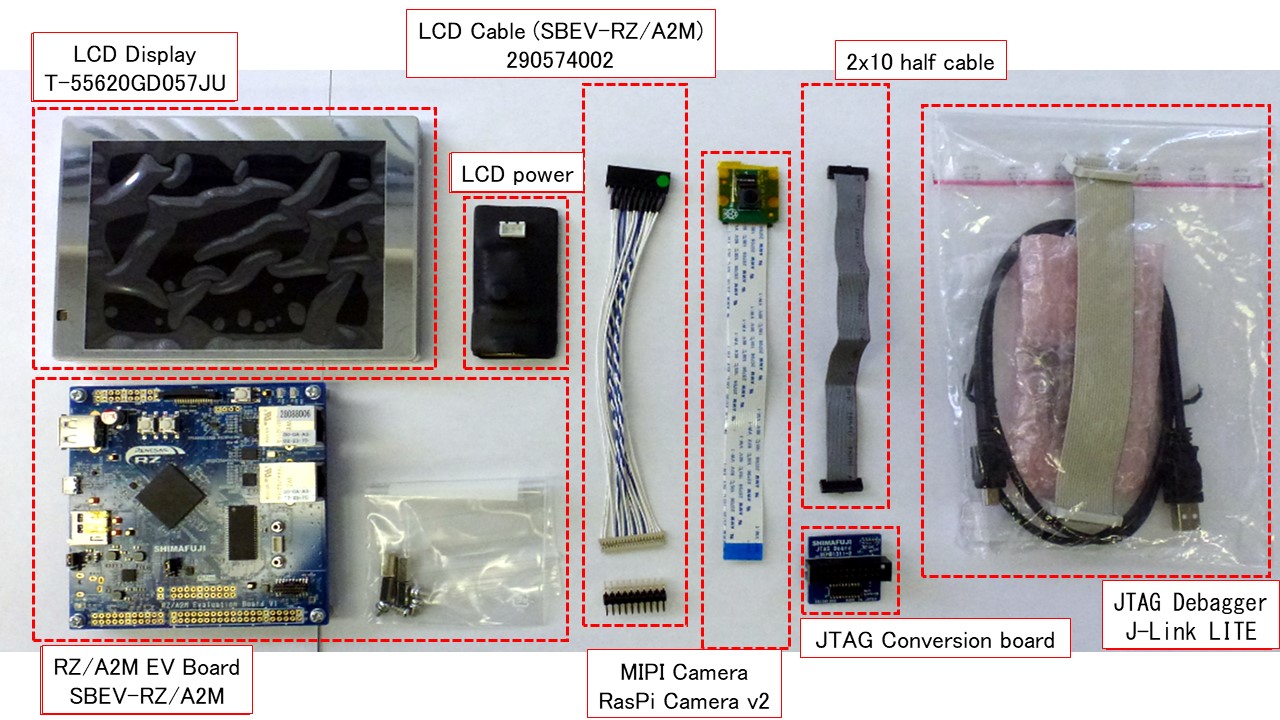

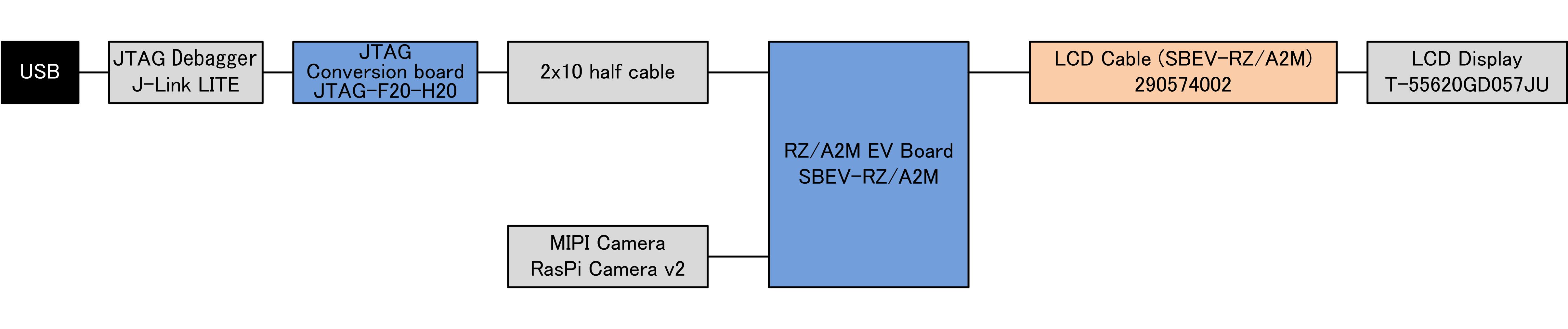

    ■ SBEV-RZ / A2M / LVDS-LCDKIT (LCD display kit)
    * Includes JTAG debugger, MIPI camera, LCD display and cables




  • CPU RZ/A2M R7S921053VCBG
      Cortex-A9 528MHz
      Built-in RAM 4MB
      DRP 6 tile
    Memory SDRAM 32MB
    Serial Flash Memory  8MB
    EEOROM  2KB
    External connection MIPI CSI-2 x1
    LVDS output  x1
    ETHER (10/100Mbps) x2
    USB2.0 Host (TypeA) x1
    USB2.0 Target (Micro-B) x1
    SD Card Slot (SD/SDHS/SDXC) x1
    DRP external I / O terminals (32)
    Extension terminal (GPIO / Video / LCD)
    JTAG (ARM, Half pitch 20pin)
    Evaluation component LED x2
    Push switch x2
    Power supply DC 5V USB (Micro-B) (/ DC jack, not mounted)
    Board size 100mm x 100mm (excluding protrusions)
  • Brochure SBEV-RZA2M.pdf
    Hardware specification( Up dated 22/June/2019) RZA2M Evaluation Board HWSpecification Rev1.05.pdf
    Difference list with Renesas RZ / A2M evaluation board Terminal_differens_between_SBEV-RZA2M_and_Renesas_board.pdf
    Schematic (zip with password) RZA2M_Evaluation_Board_Rev1.01.zip
    Software Installation Procedure (zip with password) Software_Installation_Procedure_EN.zip
  • Export
    ・ SBEV-RZ/A2M : CE
    ・ SBEV-RZ/A2M/SEG : NO CE
    ・ SBEV-RZ/A2M/IAR : NO CE
    ・ SBEV-RZ/A2M/LVDS-LCDKIT : NO CE
