SBEV-RCAR-CCPF-SK

Connected car platform evaluation board for R-Car Starter Kit
- Easy to Use
- Easy to Develop
- Easy to Access

CPUOption : R-Car Starter Kit Premier(H3)
    R-Car Starter Kit Pro(M3)

  • Product Image
  • Specification
  • Documents
  • Information

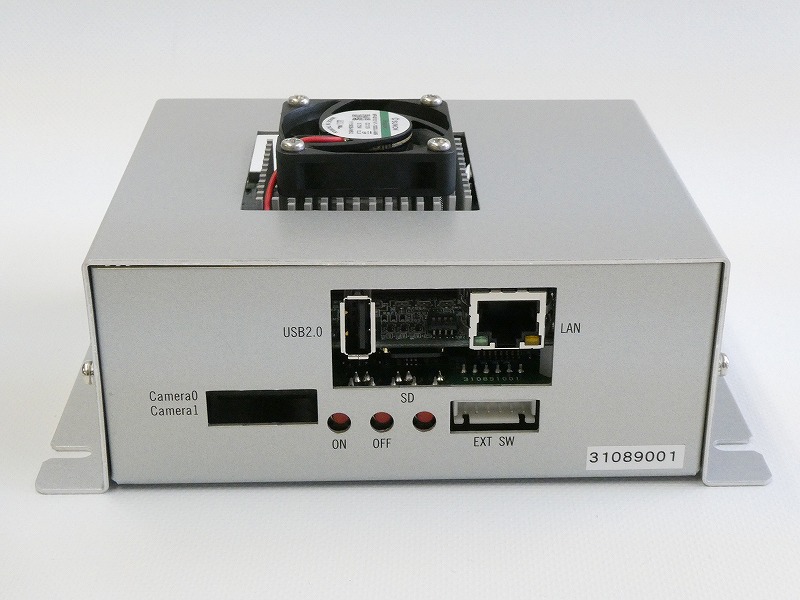

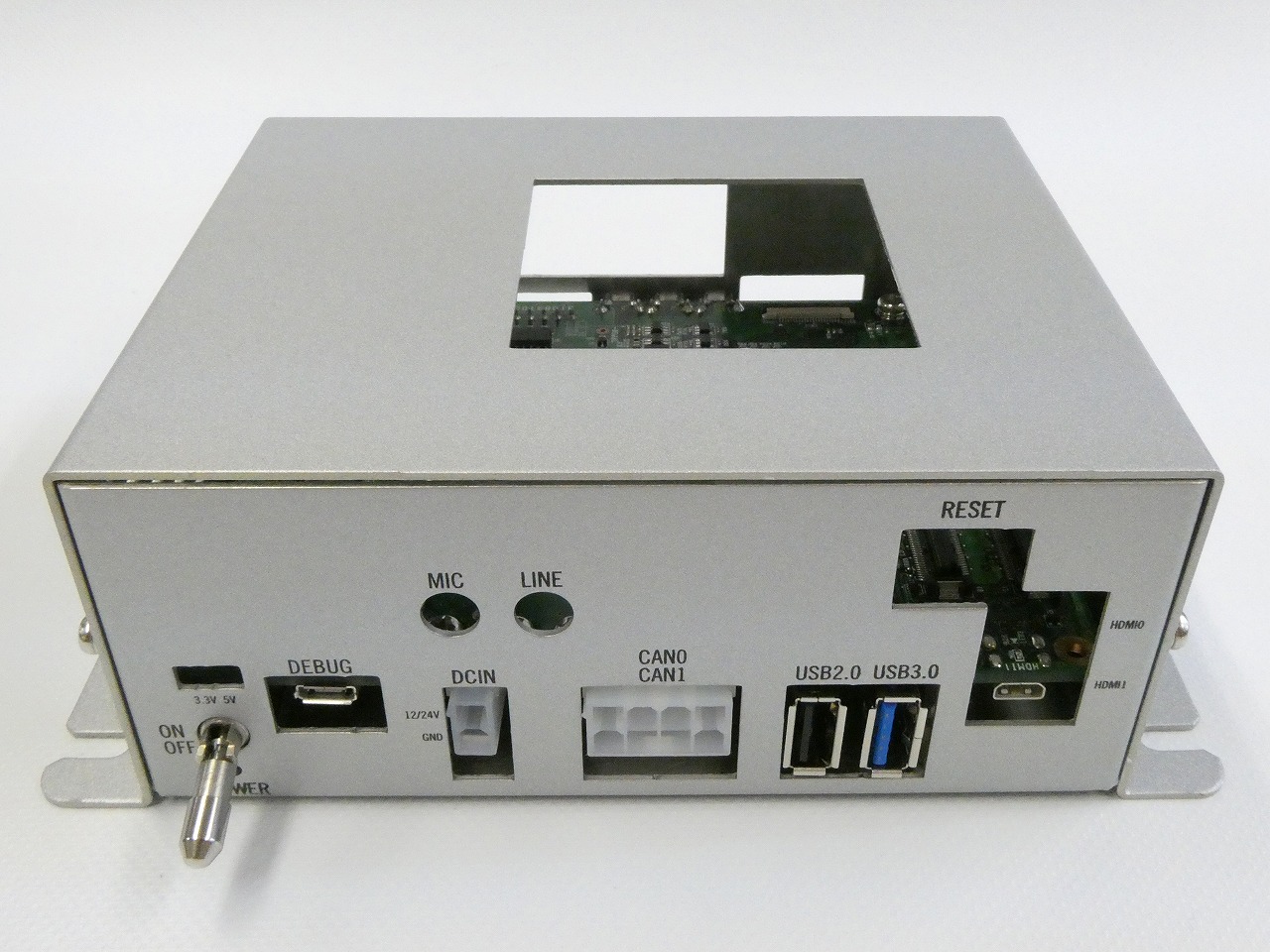

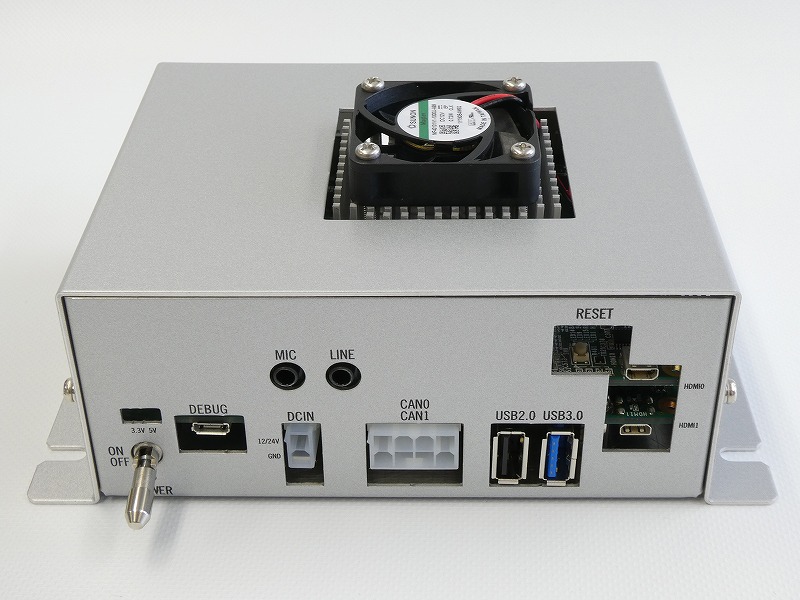

  • R-Car Starter kit + CCPF-SK

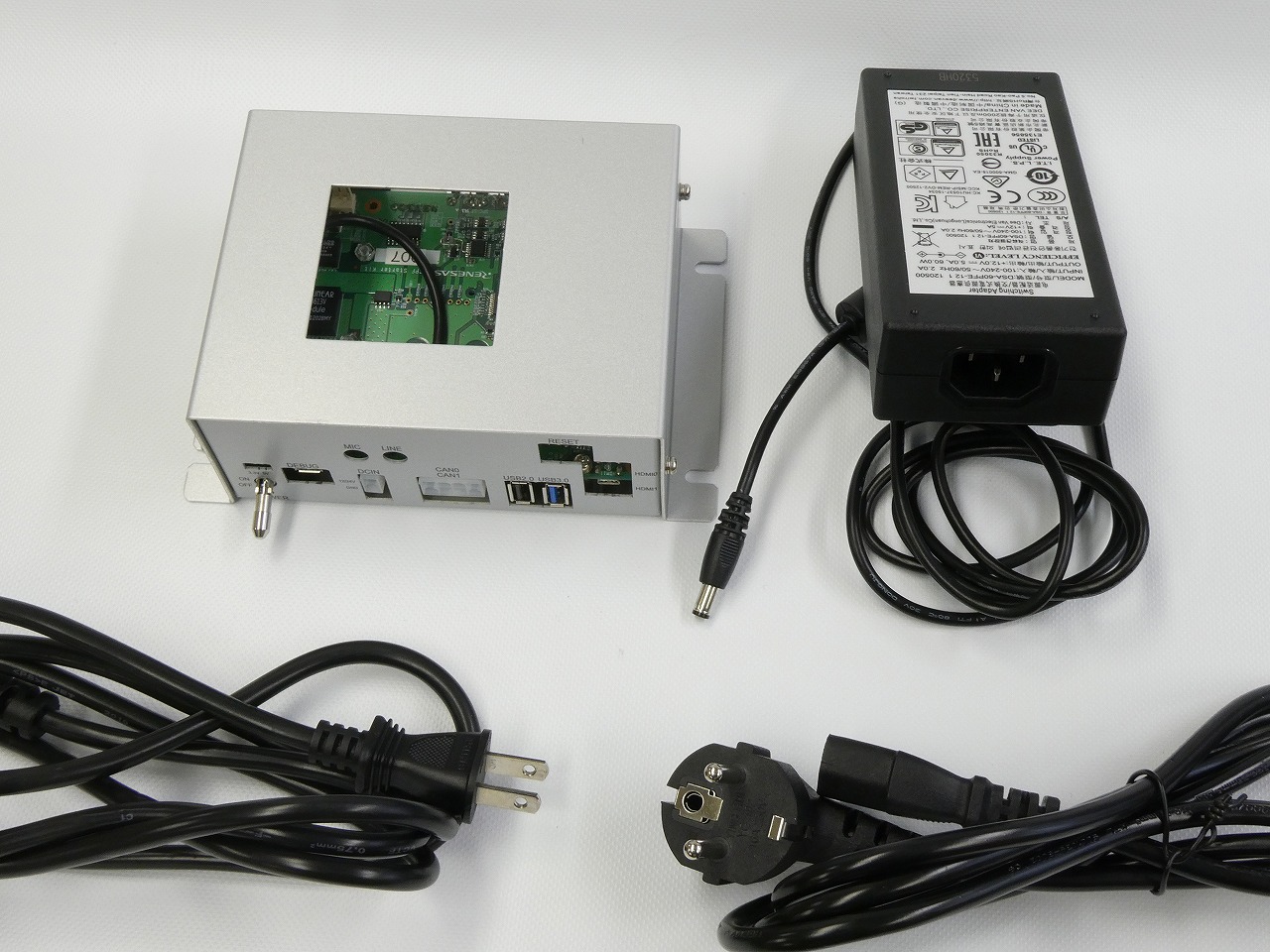

    CCPF-SK AC adapter

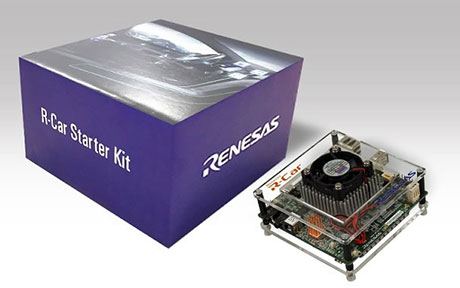

    R-Car Starter Kit

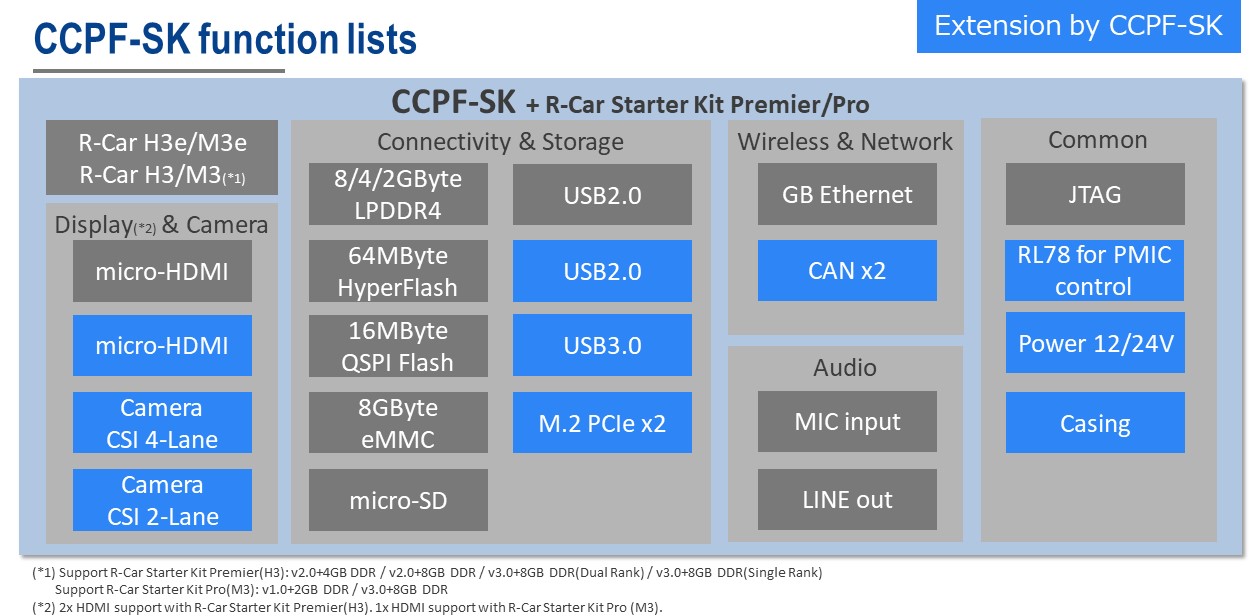

  • Features
    Starter Kit ・R-Car Starter Kit Premier(H3)
       v2.0+4GB DDR
       v2.0+8GB DDR
       v3.0+8GB DDR(Dual Rank)
       v3.0+8GB DDR(Single Rank)
    ・R-Car Starter Kit Pro(M3)
       v1.0+2GB DDR
       v3.0+8GB DDR
    Connectors ・CN1 COM Express type connector 440pin
    ・CN2 M.2 PCIe M-key SSD Card Socket ch0 (SSD,TPU compatible)
    ・CN3 M.2 PCIe M-key SSD Card Socket ch1 (SSD,TPU compatible)
    ・CN4 Display1 (R-Car Starter Kit Premier H3 only)
    ・CN5 USB 3.0
    ・CN6 USB 2.0
    ・CN7 CAN0/CAN1
    ・CN8 GPIO
    ・CN9 Main Power Supply input (12VDC or 24VDC)
    ・CN10 DEBUG SERIAL(for User)
    ・CN11 DEBUG SERIAL(for R-Car H3 StarterKit)
    ・CN12 Camera0 (MIPI CSI-2 4-Lane FPC Connector)
    ・CN13 Camera1 (MIPI CSI-2 2-Lane FPCコ Connector)
    ・CN14 RL78 DEBUG Connector
    ・CN15 FAN Connector
    ・CN16 PWRM Ext. Switch input
    Switches ・SW1 CAN0 Termination ON/OFF
    ・SW2 CAN1 Termination ON/OFF
    ・SW3 All power ON/OFF Toggle Switch
    ・SW4 PWRM Power ON Push Switch
    ・SW5 PWRM Power OFF Push Switch
    ・SW6 PWRM STANDBY Push Switch
    ・SW7 RL78 MODE Dip Switch
    Board Spec. ・Dimensions: 120mm × 97mm
    ・Board thickness: 1.6mm
    ・External power supply 12V/5A or 24V/2.5A
    ・Topr Operating ambient temperature
     Free Air room temperature 25deg ave.
    ・DCIN (+6~+30V)
    AC Adapter ・Output : DC +12V, 5A
    ・Plug : Type A and C

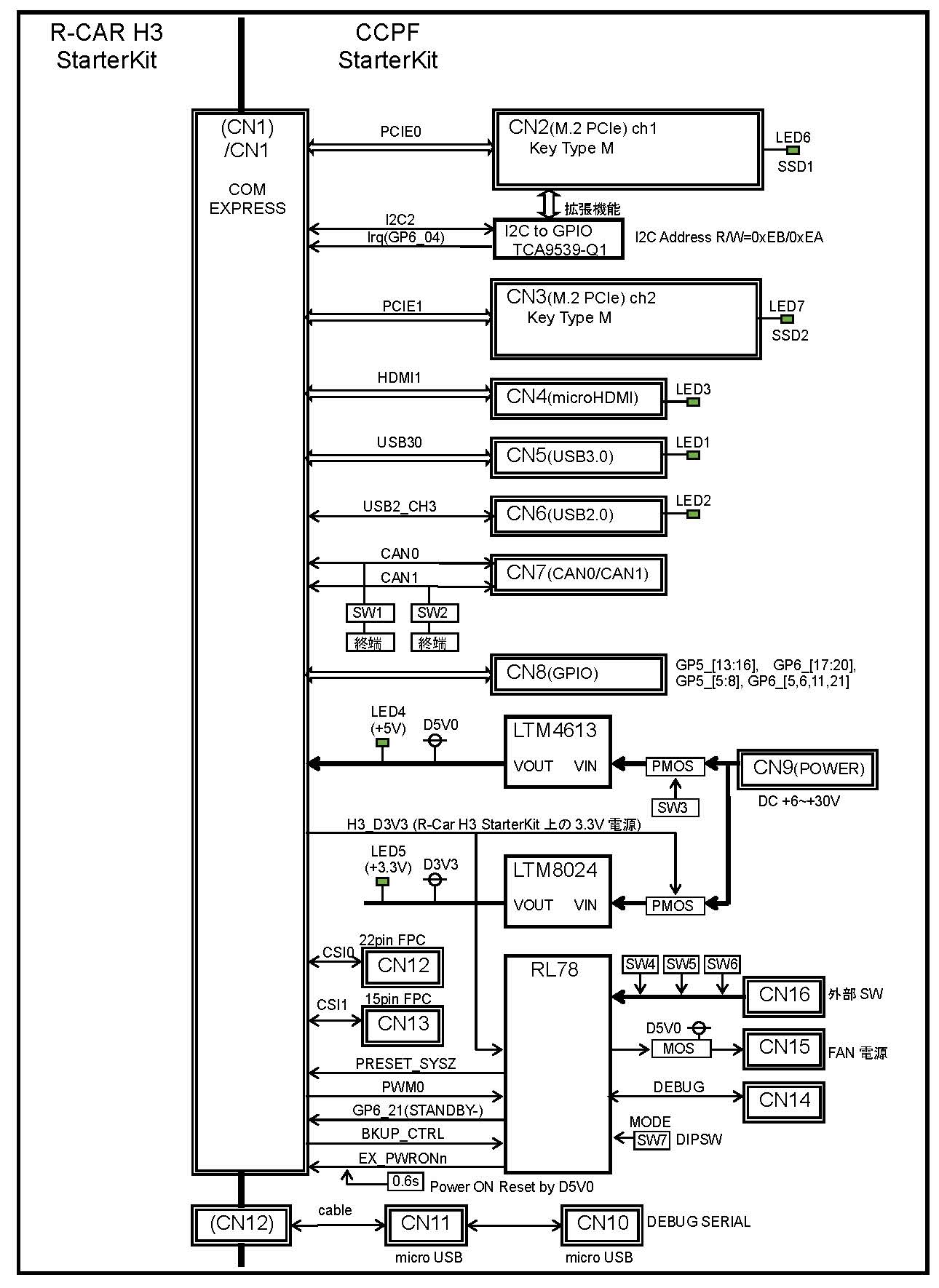

    BLOCK DIAGRAM

  •
    File name Revision Date Download
    Brochure _EN----  2021/09/02 Click here to download
    Hardware specification EN1.11  2021/09/15 Click here to download
    Board schematic0.0  2021/09/28 Click here to download
    BOM list2.00  2021/09/28 Click here to download
    Assembly instructions1.01  2021/09/15 Click here to download

    Assembly instructions video (No Sound)

    Quick start (BGM)

  • Links
    R-Car H3 device information R-Car H3
    R-Car M3 device information R-Car M3
    R-Car Starter Kit Premier board information eLinux.org - R-Car Starter Kit Premier
    R-Car Starter Kit Pro board information eLinux.org - R-Car Starter Kit Pro
    Linux / Android BSP Linux / Android BSP
