R-IN32M4-CL3 (SBEV-RIN32M4CL3)

Products

R-IN32M4-CL3 (SBEV-RIN32M4CL3)

R-IN32M4-CL3 (SBEV-RIN32M4CL3)
Evaluation board with CC-Link IE TSN / CC-Link IE Field compatible microcomputer (R-IN32M4-CL3)

This product is a software development platform equipped with a CC-Link IE TSN / CC-Link IE Field compatible Renesas Electronics microcomputer (R-IN32M4-CL3).

In addition to the industrial network (CC-Link IE TSN / CC-Link IE Field), RS-485, CSI, and I2C are installed so that customers can develop their software and systems immediately.

Sample software can be downloaded from the Renesas Electronics website.

CPUR-IN32M4-CL3 R9A06G064SGBG
Cortex-M4 150MHz
RAM 1.3MB
GbE PHY Built-in 2 port

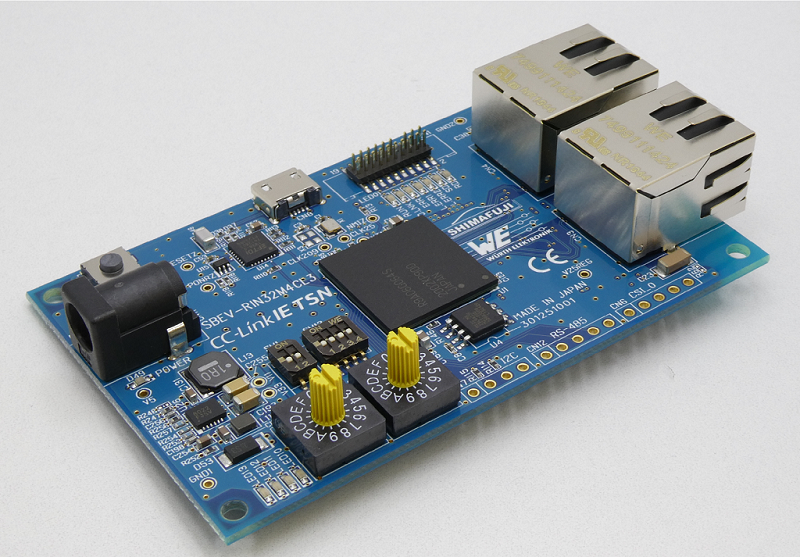

  • Product Image
  • Specification
  • Documents

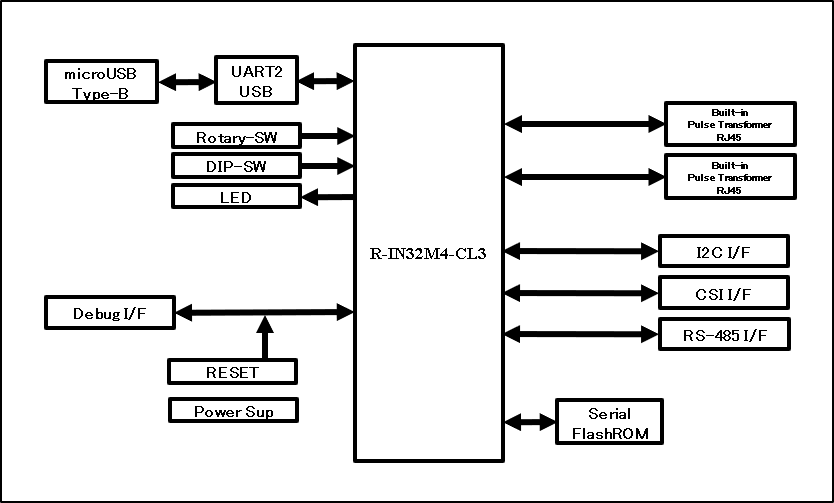

  • ■ R-IN32M4-CL3 (SBEV-RIN32M4CL3) BlockDiagram



    ■ R-IN32M4-CL3 (SBEV-RIN32M4CL3)

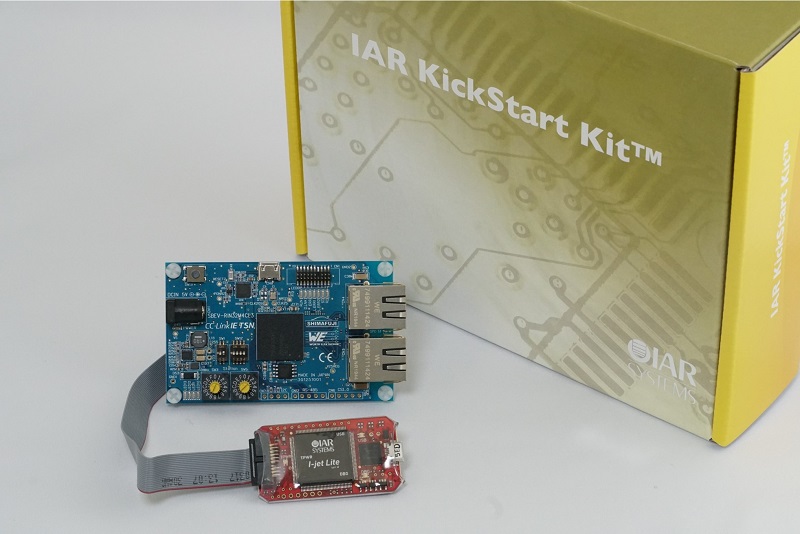

    ■ IAR Systems Starter Kit

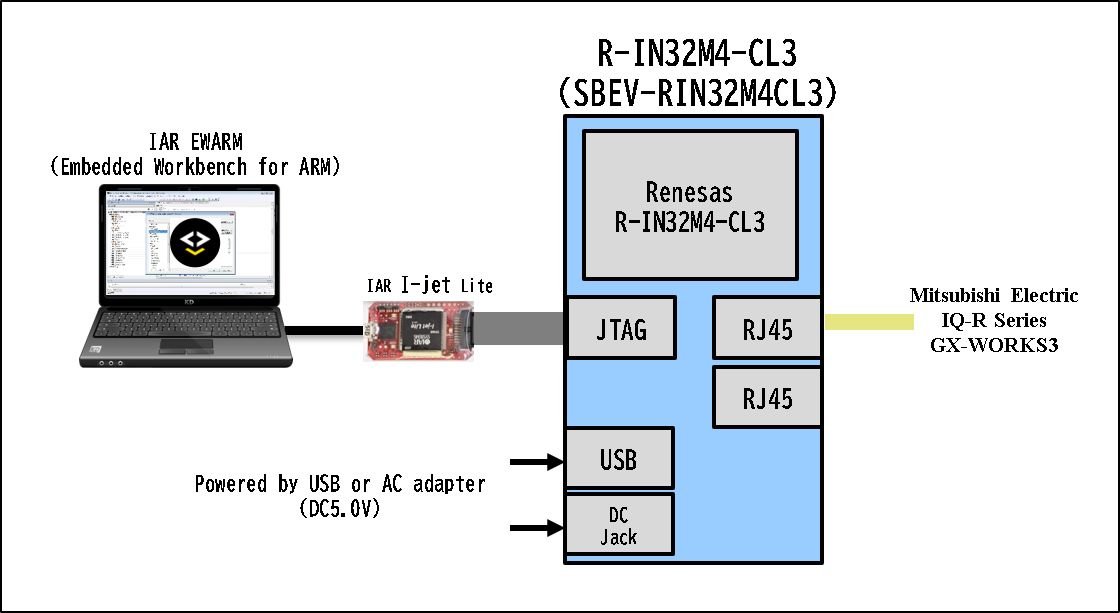

    ■ Debug environment construction diagram



  • CPU R-IN32M4-CL3 R9A06G064SGBG
      Cortex-M4 150MHz
      RAM 1.3MB
      GbE Built-in 2 port
    Memory SPI Flash Memory 8MB
    External Interface RJ45(GbE compatible) x2
    RS-485 Pin header x1
    I2C Pin header x1
    CSI Pin header x1
    Power DC5V (DC Jack/Micro USB TypeB)
    Size 85mm x 52mm
  • Brochure SBEV-RIN32M4CL3_EN.pdf
    User's manual SBEV-RIN32M4CL3_UM(E)
    Schematic/BOM
    (zip with password)
    SBEV-RIN32M4CL3_Rev1.0.zip
