R-Car V4H SBC “Sparrow Hawk” 2026年1月受付開始2月発送

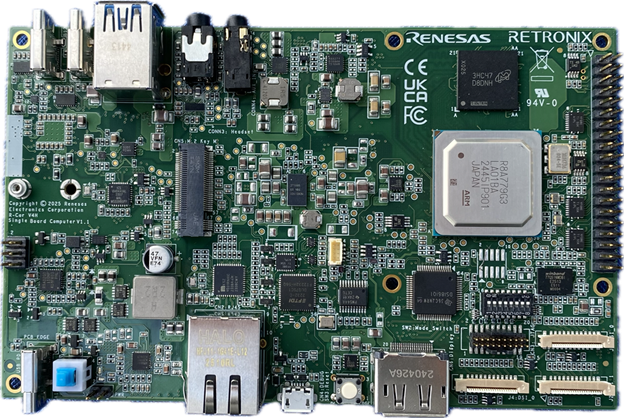

R-Car V4H SBC "Sparrow Hawk"

キャンペーン : 8GB memory R-Car V4H SBC "Sparrow Hawk"をUS$300.00で販売します（数量限定）

Support Renesas R-Car V4H series Processor
8GB/16GB LPDDR5 memory
GPU AXM-8-256 @ 600MHz, >150 GFLOPS
Communication: CAN, Ethernet AVB
PCIe Gen4 x 1
Computing power up to 30 TOPS
Target Applications: Autonomous Mobile Manipulator, Smart Manufacturing, Smart Healthcare

CPUArm® Cortex®-A76 cores at 1.8GHz x4
lockstep Arm® Cortex®-R52 cores at 1.4GHz x3

• 製品イメージ
• 仕様
• 関連情報

• R-Car V4H SBC




• CPU	Four Arm® Cortex®-A76 cores at 1.8GHz 　　Three lockstep Arm® Cortex®-R52 cores at 1.4GHz
  Memory	LPDDR5 6400Mbps 8GB / 5500Mbps 16GB 　　NOR Flash : 64MB Security QSPI 　　microSD Card Slot : Support SD, SDHC, SDXC
  I/O	Camera I/F 2x Raspberry Pi Camera 　　Display 1x DP, 1x Raspberry Pi Display Connector 　　Ethernet AVB 1 Port(1Gbps) 　　Debug Serial 2 Port 　　Audio In / Out 　　PCIe 4.0 1x M.2 Key-M 　　USB3.0 2x Type-C, 2x Type-A 　　CAN-FD 2 Port 　　Extensions Raspberry Pi 40-Pin Connector 　　Power USB PD 20V 3A~5A(60~100W)
  OS	Linux Yocto/Debian Linux
  Environment	Operating Temperature 0°C ~ 40°C 　　Humidity 5% ~ 95% Non-condensing
  Dimension	Form Factor 146 X 90 mm
  Option	Basic Kit: microSD Card 32GB 　　Complete Kit: microSD Card 32GB/RPi Fan Hat/USB PD Adapter/Debug Serial Cable

• Links
  Sparrow Hawk Software Download		Board Software Package(外部リンク)
  Retronix Technology Inc.		Retronix(外部リンク)
