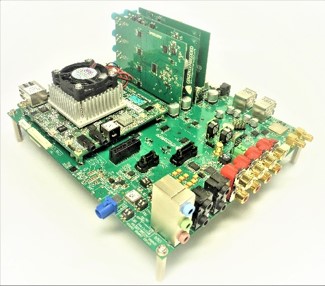

Kingfisher for R-Car Starter Kit
   R-Car Starter Kit extension for infotainment software development
   Next-gen cockpit & connected car prototyping
   High-grade HMI app with surround viewing
   Location service assisted by the Internet connection

   Advanced Model : SBEV-RCAR-KF-M05
   Standard Model : SBEV-RCAR-KF-S03
 SBEV-RCAR-KF-xxx


Features
Multi Display & Multi Camera Max 8ch & Selectable camera LVDS IF for in-vehicle connection
Max 3ch Displey output
Wireless & In-Vehicle network WiFi/BT/x2 CANFD/Ethernet AVB/MOST50
Optimized for In-vehicle peripherals and interface
Easy to start automotive Linux Best suited for AGL and GENIVI development
All technical documents and basic software will be obtained from
eLinux.org/R-Car pages

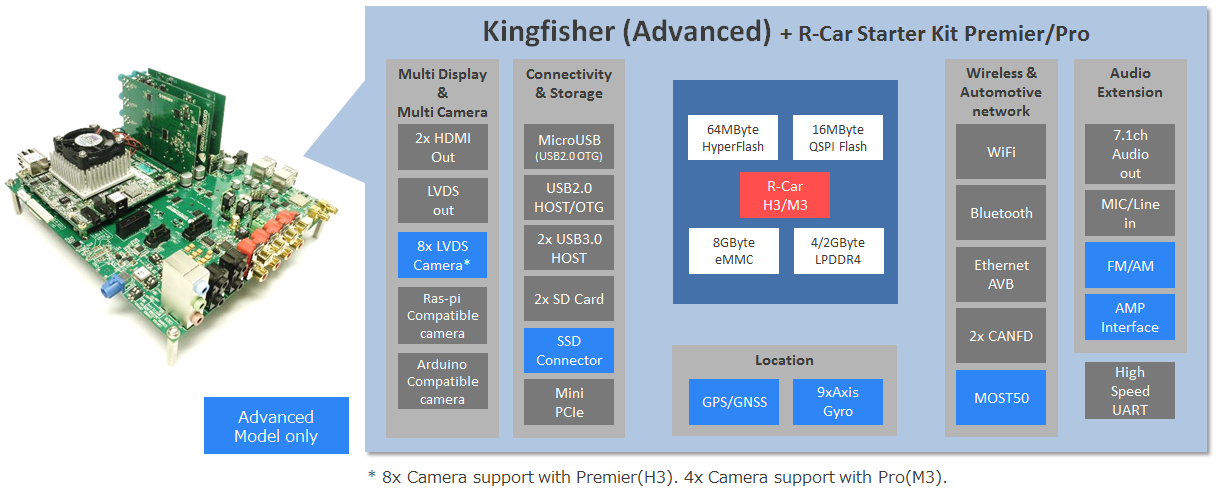

BLOCK DIAGRAM



 GMSL Camera board


Features
Serializer MAX9286GTN/V+x1
Connector PE44651Z(FAKRA) x4 (Camera side)
FX23-60S-0.5SHx1 (kingfisher side)
Control I2Cx1
DIP Switch Mode select x1
LEDs Link LED x4、Mode LEDx5
Board size 92mm×64mm
Power DC 3.3V、12V(via connector)

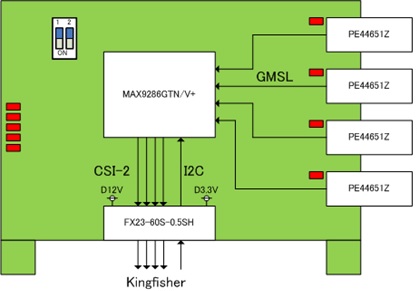

BLOCK DIAGRAM


Kingfisher Brochure Kingfisher SP27E5002.pdf
GMSL Camera Board Brochure GMSL02SP27E9003.pdf
Kingfisher Technical Documents Technical document download.
elinux link http://elinux.org/R-Car/Boards/Kingfisher
